Barcol Hardness Tester 934-2
Product Description

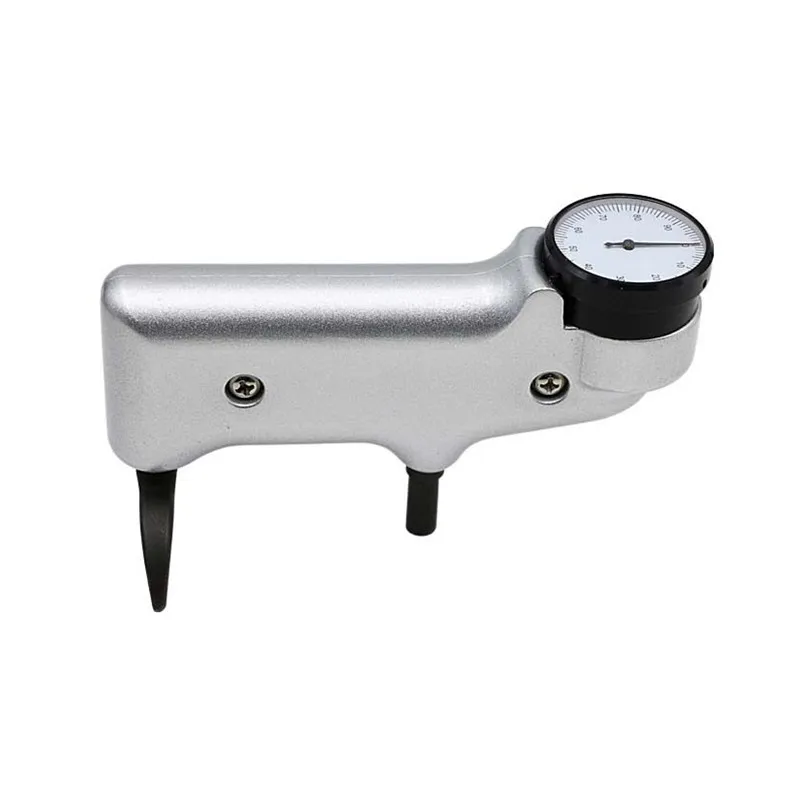

● This Hand-held portable barcol impressor hardness tester, convenient for testing the hardness of soft metals such as aluminum and its alloys, brass, copper, and some of the harder plastics and fiberglass.
● The Impressor is designed for fabricated parts and assemblies as well as raw stock.
● Easy to Use, no experience required; can be used in any position and in any space
● The hardness reading is instantly indicated on the dial, which is divided into one hundred graduations. No waiting,loading or separate measurements.
Technical Parameters
|
Model |
934-1 |
|
Measuring range |
0-100 HBa |
|
Resolution |
0.5 HBa |
|
Indenter |
26° frustoconical, end face diameter 0.176mm |
|
Effective Range |
35-90 HBa (equivalent to 25-150 HBW) |
|
Standard |
ASTM B648-2000, GB/T3854-2005, ASTM D2583-07 |
|
Indication Error |
42-52 HBa± 2 HBa 84-88 HBa± 1 HBa |
|
Repeatability Error |
42-48 HBa±2.5 HBa 81-88 HBa± 1.5 HBa |
|
Sample thickness Requirements |
>0.8 mm |
|
Weight |
0.5 kg |
Packing List
Main Unit x 1
Standard test block x 2
Spare indenter x 2
Calibration wrench x 1
Leg x 1
Carrying case x 1
User manual x 1
